Flexible LED Sheet



Also termed as LED Light Sheet or LED light paper, we offer flexible, cuttable low voltage LED matrix sheet for area illumination and backlighting applications.

LED Light Sheets may be cascaded, connected together to produce large area illumination surfaces. Configurations are based on 12V or 24VDC operating voltage with options for pixel addressable and moisture / waterproof  versions meeting IP62, IP65 standards.

Multi-colour RGBW Flexible LED Sheet 12v

Designed for area backlighting in Lightbox projects and dynamic, decorative lighting, the PLS503-RGBW series, flexible LED sheet comprises of an array of 105 LED emitters to provide a bright and even surface illumination

  • Operating voltage 12VDC
  • 503x235mm sheet  LED Matrix: 15x7 LED emitters
  • Full colour RGBW 4-in-1 5050 LED emitters
  •  Power consumption 33.6W max
  • 120° Angle
  • Cuttable matrix in 3 LED increments 100x33.5mm
  • IP20

Multi-colour RGBW Flexible LED Sheet 24v

Designed for area backlighting in Lightbox projects and dynamic, decorative lighting, the PLS503-RGBW series, flexible LED sheet comprises of an array of 105 LED emitters to provide a bright and even surface illumination

  • Operating voltage 24VDC
  • 503x235mm sheet  LED Matrix: 15x7 LED emitters
  • Full colour RGBW 4-in-1 5050 LED emitters
  •  Power consumption 28W max
  • 120° Angle
  • Cuttable matrix in 7 LED increments 235x33.5mm
  • IP20

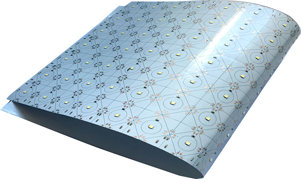

Mono-colour Flexible LED Sheet

Designed for area backlighting in Lightbox projects and also termed "light paper" the PLS series flexible LED sheet comprises of an array of 105 LED emitters to provide a bright and even surface illumination

  • Operating voltage 12VDC
  • 503x235mm sheet  LED Matrix:15x7 LED emitters
  • 120° Angle
  • Cuttable matrix at single LED point
  • IP20

Mono-colour Flexible LED Sheet with optics

Designed for area backlighting in Lightbox projects and termed "light paper" the PLSO series flexible LED sheet comprises of an array of 105 LED emitters with optics to provide a bright and even surface illumination

  • Operating voltage 12VDC
  • 503x235mm sheet  LED Matrix:15x7 LED emitters
  • 160° Angle
  • Cuttable matrix at single LED point
  • IP20

Mono-colour Flexible LED Sheet SPI Addressable

Designed for dynamic area backlighting in Lightbox projects the PLSA503x235 series flexible LED sheet comprises of an array of 264 SPI pixel addressable LED emitters to provide a dynamic display illumination

  • Operating voltage 12VDC
  • LED Matrix: 24x11 2835 LED emitters
  • Power consumption 64W (All ON)
  • 160° Angle
  • Cuttable matrix at 250x21mm increments
  • IP20

Use in conjunction with our range of SPI controllers
