Winstar compact TAB (Tape Automatic Bonding) LCD modules are available with resolutions from 128x64 pixel to 320x240 pixel.
Winstar compact TAB (Tape Automatic Bonding) LCD modules are available with resolutions from 128x64 pixel to 320x240 pixel. These TAB LCD display are available with different LED backlight solutions and without backlight
option. LED Backlight options include yellow/green, white, blue, red.Winstar TAB product are lightweight, feature ultra thin profile and low power consumption which is ideally suited for handheld instruments, PDAs, etc.
Display Format | Model Number | Outline Dimension | Viewing Area | Dot Size | Interface | Controller |
---|---|---|---|---|---|---|
128x64 | WX1286L | 90.5 x 50.0 | 67.0 x 40.0 | 0.42 x 0.5 | 6800, 8080, SPI | ST7565P |
128x64 | WX1286T | 35.0 x 24.22 | 29.58 x 17.98 | 0.18 x 0.23 | 6800, 8080, SPI | NT7534 |
128x64 | WX1286T1 | 35.0 x 65.6 | 29.58 x 17.98 | 0.18 x 0.23 | 6800, 8080, SPI | NT7534 |
128x64 | WX1286U | 56.0 x 42.5 | 52.0 x 36.0 | 0.35 x 0.4 | 6800, 8080, SPI | NT7534 |
128x64 | WX1286U1 | 56.0 x 42.5 | 52.0 x 36.0 | 0.35 x 0.4 | 6800, 8080, SPI | NT7534 |
240x64 | WX2406B1 | 180.0 x 65.0 | 133.0 x 39.0 | 0.49 x 0.49 | 6800, 8080, SPI | ST7565P |
240x160 | WX240160A | 74.6 x 56.7 | 66.0 x 47.5 | 0.22 x 0.22 | No Controller | N/A |
320x240 | WX320240D | 94.7 x 71.7 | 81.44 x 61.0 | 0.225 x 0.225 | 6800, 8080 | RA8835 |

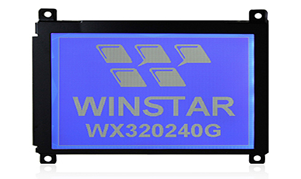

320x240 | WX320240G | 94.7 x 71.7 | 81.44 x 61.0 | 0.225 x 0.225 | No Controller | N/A |
