Mains Input 0-10v 8W-40W CC

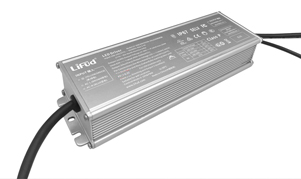

The Lifud LF-AA series constant current 0-10v dimmable LED drivers are available in power ratings from 8W-40W. The output current is set by DIP switch

  • AC mains input 200-240VAC
  • Adjustable current output set by DIP switch
  • Output power 8W-40WW
  • 0-10V, PWM/RX dimming
  • 0-100% flicker free dimming
  • Compliant to international standards
  • Rated IP20

Selector Guide LF-AAA series PDF

Mains Input 0-10v 10W CC

The SE-10-350-700-W1A is a 10W constant current 0-10v / 1-10v  dimmer driver. The driver has multiple input protocols and automatic recognition of 0-10V, 1-10V input signal with soft on and fade in function and features short circuit, over-heat, over load and over voltage protection.

  • AC mains input 200-240VAC
  • Adjustable output 350mA to 700mA
  • Output power 10W
  • 0-10V (1-10V/10VPWM/RX)
  • 0-100% flicker free dimming
  • Compliant to international standards
  • 135x30x20mm (LxWxH)

SE-10-350-700-W1A PDF

Mains Input 0-10v 36W CC

AD-36-200-1200-UP1 Constant current 1-10v  dimmable LED driver

The AD-36-200-1200-U1P1 is a 36W constant current 0-10v / 1-10v  dimmer driver. The driver has multiple input protocols and automatic recognition of 0-10V, 1-10V input signal with soft on and fade in function and features short circuit, over-heat, over load and over voltage protection.

  • AC mains input 200-240VAC
  • Adjustable output 200mA to 1200mA
  • Output power 36W
  • 0-10V (1-10V/10VPWM/RX)
  • 0-100% flicker free dimming
  • Compliant to international standards
  • 175x44x30mm (LxWxH)

AD-36-200-1200-U1P1 PDF

Mains Input 0-10v 50W CC

The SRP2007-50-CC is a single channel 50W constant current 1-10v  dimmer driver. The driver conforms to international safety and emission standards and offer short circuit, over-heat, over load and over voltage protection.

  • AC mains input 200-240VAC
  • Adjustable output 250mA to 1500mA
  • Output power 50W
  • Compliant to international standards
  • 0-100% flicker free dimming
  • 8v to 48v output range
  • 210x50x32mm (LxWxH)

SRP-2007-50W-CC PDF

Mains Input 0-10v 50W CCT

The SRP2007-50-CCT is a dual channel 50W constant current 1-10v  dimmer driver designed for CCT control. The driver conforms to international safety and emission standards and offer short circuit, over-heat, over load and over voltage protection.

  • AC mains input 200-240VAC
  • 2-Channel for CCT control
  • Adjustable output 250mA to 1500mA
  • Output power 50W
  • Compliant to international standards
  • 0-100% flicker free dimming
  • 8v to 48v output range
  • 210x50x32mm (LxWxH)

SRP-2007-50W-CCT PDF
