Wireless Switch & Rotary Control Panels

EasyAir 2B Wireless switch

The EasyAir 2B Wireless switch is designed to work together with EasyAir SNS210 MC, EasyAir SNH(B)210 MC, EasyAir SNS200 or EasyAir SNH200 sensors by wireless RF signal. The switch offers on/off dimming. and requires no wiring connection or batteries.

• No wiring or batteries required
• Wireless RF 2.4GHz / Zigbee control
• Mount by adhesive or screws
• On/Off and dimming control
• Wireless range up to 10 metres line of sight
• Compliant with radio directive 2014/53/EU.
• 81mm x 81mm x 14mm

EasyAir_2B_4Bswitch PDF

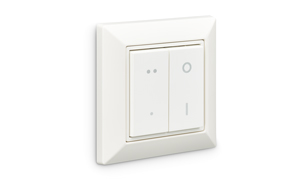

EasyAir 4B Wireless switch

The EasyAir 4B Wireless switch is designed to work together with EasyAir SNS210 MC, EasyAir SNH(B)210 MC, EasyAir SNS200 or EasyAir SNH200 sensors by wireless RF signal. The switch offers on/off dimming and scene setting and requires no wiring connection or batteries.

• No wiring or batteries required
• Wireless RF 2.4GHz / Zigbee control
• Mount by adhesive or screws
• On/Off and dimming control
• Wireless range up to 10 metres line of sight
• Compliant with radio directive 2014/53/EU.
• 81mm x 81mm x 14mm

EasyAir_2B_4Bswitch PDF

K1 RF LED Controller

The K1 rotary panel dimmer is designed to drive LED strips and clusters by wireless RF signal. The dimmer offers single colour brightness and CT control with built in push on/off switch and is easily mounted using the magnetic rear cover.

• Battery powered 3v (CR2032) included

• Wireless RF 2.4GHz control
• Magnetic rear cover for easy mounting
• Brightness and CT control

• Wireless range up to 30 metres

• Pairs with FUT-035 and FUT-036 RF receiver/drivers

• 86x86x27mm

K1 PDF

E6-TD1 AC Mains

The E6-TD1 mains rotary panel dimmer is designed to control LED strips and clusters by AC mains triac drivers. The dimmer has built in power switch and is easily mounted into a standard single gang wall plate.

• AC mains input 220-240VAC

• leading edge triac control
• Hard Wired connection via terminal block
• Incandescent lamp: 25-500W

• High-voltage halogen lamp: 25-500W

• Dimming LEDs: 6-300W

• compatible with triac LED drivers

E6-TD1 PDF

EX61 DMX512

The EX61 is a wireless rotary panel LED dimmer designed to drive LED strips and clusters via RF or wired DMX signal. May be used in conjunction with RF receiver drivers F4-5A and F4-CC and DMX512 decoder drivers. Control also via F1 hand-held remote control.

• AC mains input 100-240VAC

• Hard wired DMX512

• Compatible with L-Bus system

• Wireless RF 2.4Ghz

• Communicate with WiFi gateway
• Single channel
• 30 metre transmission distance
• Control also via F1 hand-held remote control


EX61 PDF

E6-DA1 DALI

The E6-DALI rotary panel dimmer is designed to drive LED strips and clusters via DALI signal. The dimmer has built in power switch and is easily mounted into a standard single gang wall plate.

• DALI Power supply

• Single channel DALI
• Adopts DALI standard protocol IEC62386

• Compatible with DALI constant voltage drivers

• Compatible with DALI constant current crivers


E6-DA1 PDF

E610P-RF 0-10V

The E610P-RF is a rotary panel LED dimmer module with RF control designed to drive LED strips and clusters via 0/1-10v dimmer drivers. The dimmer has built in power switch and is easily mounted into a standard single gang wall plate.

• AC mains input 100-240VAC

• RF 2.4Ghz remote control
• Output 0-10v 50mA
• Single channel

• Compatible with WiFi gateway

• Use in conjunction with F1 Hand-held remote


E610P-RF PDF

E610-P 0-10V

The E610-P is a rotary panel 0-10v dimmer module designed to drive LED strips and fittings via 0/1-10v dimmer drivers.
The dimmer has built in power switch and is easily mounted into a standard single gang wall plate.

• AC mains input 100-240VAC

• Output 0-10v 50mA
• Single channel
• Compatible with 0-10v dimmer drivers


E610-P Series PDF

BC-K3-RGB

The BC-K3-RGB rotary panel LED controller is designed to drive full colour LED lamps and fittings via hard wired 3-channel constant voltage output.

• Low voltage 12-24VDC

• 3 channel 4A/ch
• 3-channel RGB control
• Hard wire to lamps & drivers

• Load power max 288W


BC-K3-RGB PDF

BC-K2-CT

The BC-K2-CT rotary panel LED controller is designed to drive 2-channel White colour temperature LED lamps and fittings via hard wired 3-channel constant voltage output.

• Low voltage 12-24VDC

• 2 channel 4A/ch
• 2-channel CT control
• Hard wire to lamps & drivers

• Load power max 192W
