WiFi LED Controllers

WiFi-106

The WIFI-106 4-channel WiFi lighting control system facilitates control of a wide range of LED products. It may be connected directly or via a router and is also supported by App on iOS or Android mobile devices. Suitable for RGB, RGBW & RGBWW LED the system offers 12 Zone control and user programmable effects.

•  Compatible with L-BUS lighting sytem
•  Input voltage 12V to 24VDC
• 4-channel output 4A/channel PWM
• Pairs with R4-5A, R4-CC, F4-DMX & F5-DMX drivers
• 12 zone control
• User programmable effects

• Connection by screw terminals
• Supplied with F12 hand-held controller

L-BUS Lighting System  PDF

WiFi-106 PDF

WiFi-104

The WIFI-104 4-channel LED controller/driver can be used as an LED dimmer, CCT & RGBW controller. Users may select pre-programmed effects or design their own effects from the controlling software.  A range of LED lighting products may be controlled from compatible mobile devices such as Android, IOS phones and tablet PC's. The WiFi104 includes the M12 hand-held remote controller.

• WiFi Controller and Driver

• Input voltage 12V to 24VDC
• 4-channel output 4A/channel PWM

• Pairs with R4-5A, R4-CC LED drivers
• L128×W73×H45(mm)

• Connection by screw terminals

• Supplied with M12 hand-held controller


WiFi-104 PDF

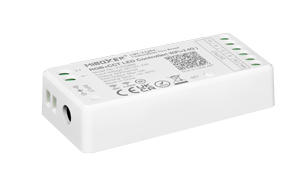

FUT-W series WiFi+RF

The FUT-W series WiFi+RF 2.4GHz controller/drivers comprise of  5 models designed to control dimming, CT, RGB, RGBW and RGB+CT. Controllers use WiFi + Bluetooth to improve network connection and may be controlled from a range of compatible hand-held remotes and RF Touch panels.

• Input voltage 12V to 24VDC Output 12A
• FUT036W 1-channel output  Dimming

• FUT035W 2-channel output  CT

• FUT037W 3-channel output  RGB

• FUT038W 4-channel output RGBW

• FUT039W 5-channel output RGB+CT

• Transmission distance 30 metres

• No Gateway required

• Expand scheme with PA series repeaters

• Supports Smartphone App & 3rd party voice control


FUT039W PDF

Compatible RF Controllers  PDF

ST-75-12 & ST75 24 Series

The ST75-12 and ST75-24 series muti-channel WiFi controllers are designed  to drive constant voltage LED lighting products. The controllers interface with mobile devices such as Android & IOS phones and tablet PC's with built in power supply for direct connection to AC mains supply.  Also compatible with touch panels and hand-held remote controls.

• AC mains input 100 - 240VAC

• ST-75-12-W1W2 12VDC 1-ch Dim 5A
• ST-75-12-W2W2 12VDC 2-ch CCT 2.5A

• ST-75-12-W3W2 12VDC 3-ch RGB 1.67A
• ST-75-24-W1W2 24VDC 1 ch Dim3.12A

• ST-75-24-W2W2 24VDC 2-ch CCT 1.56A

• ST-75-24-W3W2 24VDC 3-ch RGB 1.04A

• Short circuit, over current protection

• Over temperature protection

• Compliant to international standards


ST75-12-24 PDF

WL5 5-in-1 WiFi Controller

The WL5 is a muti-channel WiFi LED controller designed  to drive constant voltage LED lighting products. The controller interfaces with mobile devices Android, IOS phones & tablet PC's. The controller is also compatible with hand-held remote controls, touch panels and 3rd party voice controls.

• Low voltage input 12V - 24VDC

• 5-channel 6A/channel

• WiFi-IEEE 802.11b/g/n 2.4GHz RF: 2.4GHz

• Wireless and 4G controlled by APP

• Supports 3rd party voice control

• Supports multiple transmission


WL5 Wifi 5-in-1 RGBWW PDF

WL5 Remote Controls PDF

WL5 WiFi LED Strip Kit PDF

WiFi-102 RGBW

The WiFi-102-RGBW is a 4-channel WiFi LED controllers designed to control RGBW LED strips and is commmunicates with mobile devices such as Android, IOS phones and tablet PC's via router using 2.4GHz Wi-Fi, 802.11b/g/n protocol, features include voice control, time switch and music function. A range of pre-programmed effects or user designed can be realised.

• Low voltage input 12V - 24VDC

• Output 3-channels 4A/channel
• Pairs with wireless router

• Connect to Touch panels via router
• Connect to Amazon Echo and Genie

• Connection by screw terminal block

• L125 x W33 x H20(mm)


WiFi-102-RGBW PDF

WiFi-108 Gateway

The WIFI-108 Intelligent gateway facilitates control of a wide range of LED products. It may be connected directly or via a router and is also supported by App on iOS or Android mobile devices. The unit supports voice control Amazon ECHO and Genie smart. A third party communication interface is also provided.

•  Compatible with L-BUS lighting sytem

• Input voltage 5VDC
• Multi-zone control

• Voice control with Amazon Echo & Genie smart
• Connection by RJ45

• Supported by IOS and Android App

• L90×W90×H55mm


WiFi-108 PDF

WiFi-101-CT

The WiFi-101-CT 2-channel WiFi LED controllers is designed to control colour adjustable LED strips and is compatible with mobile devices such as Android, IOS phones and tablet PC's. Using 2.4GHz Wi-Fi, 802.11b/g/n protocol, features include voice control, time switch and music function. A range of pre-programmed effects or user designed can be realised.

• Low voltage input 12V - 24VDC

• Output 3-channels 4A/channel
• Pairs with mobile devices, hand-held remotes

• Pairs with Touch panel controls
• Pairs with Amazon Echo and Genie

• Connection by screw terminal block

• L125 x W33 x H20(mm)


WiFi-101-CT PDF

WL-BOX1 RF to WiFi Gateway

The WL-Box-1 facilitates a bridge connection from RF 2.4GHz to Wifi wireless networks allowing connection of Smartphone Apps
 The  WL-Box1 supports third party voice controls Amazon Alexa and Google Assistant.

• Supply voltage 5V micro USB

• Low power consumption

• Low susceptibility to interference

• 30 metre transmission distance

• Compatible with FUT series RF products

• L90.5 x W66 x H15(mm)
