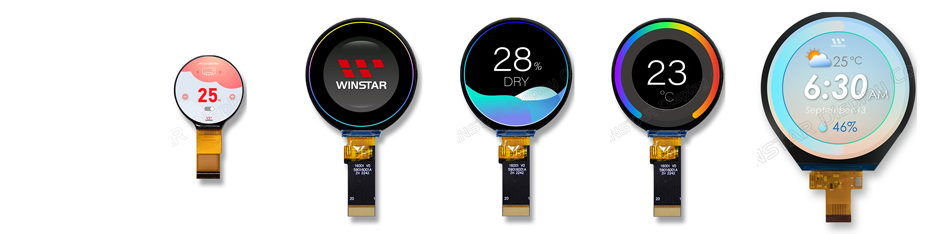

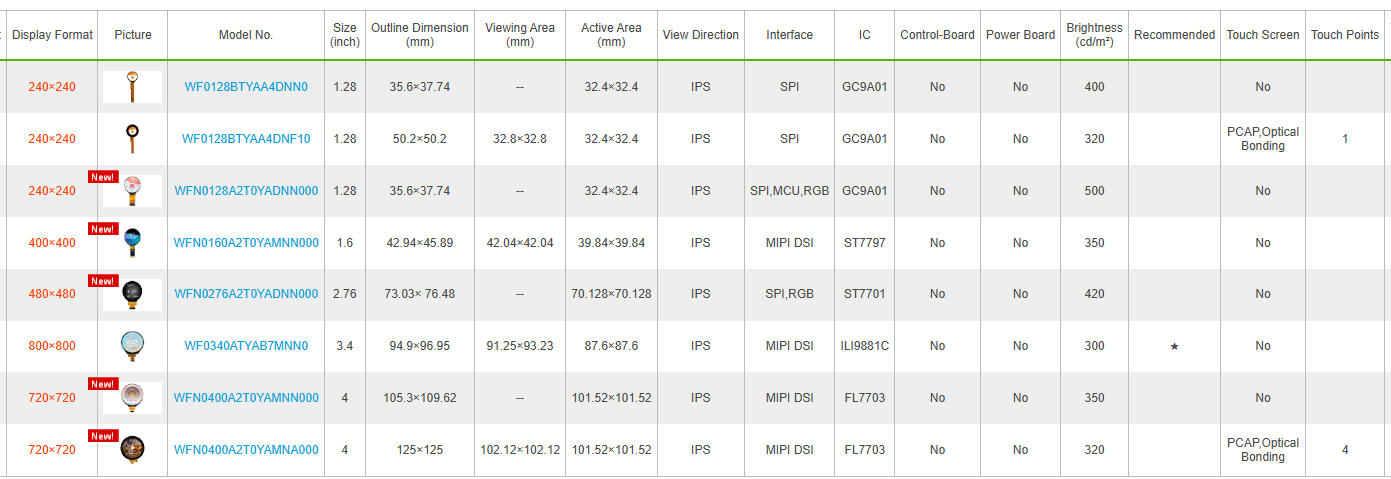

WINSTAR offers a comprehensive range of round TFT LCD display modules, available in sizes from 1.28" to 4", featuring advanced IPS wide viewing angle technology. With both capacitive touch and non-touch options, these round displays provide exceptional visual clarity and stability. The resolution ranges from 240x240 to 720x720 dots, making them suitable for a wide array of applications. These round TFT modules support multiple interfaces, including SPI, RGB, and MIPI, ensuring seamless integration into a variety of systems.

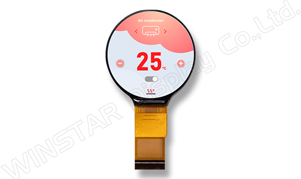

1.28" Miniature Round TFT Display

he WFN0128A2T0YADNN000 is a compact 1.28-inch round TFT LCD module featuring a wide-view IPS panel and 240x240 high resolution. It is ideal for end products requiring round UI design, such as smart home controllers, wearable devices, and industrial control knobs.

This module integrates the GC9A01 driver IC and supports multiple display interfaces, including 8/9/16/18-bit MCU, 3/4-wire SPI serial interface, and 16/18-bit RGB, enabling flexible integration with various host platforms.
 The panel brightness reaches 500 cd/m², with a contrast ratio of 700:1, operating temperature range from -20°C to +70°C, and an LED lifetime of 50,000 hours, providing excellent display performance and long-term reliability.

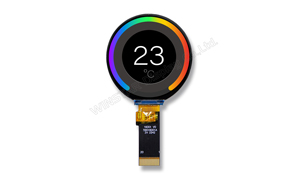

1.6" Round TFT Display

The WFN0160A2TOYAMNN is a  1.6" circular IPS TFT LCD Display Module featuring advanced TFT technology, utilizing Amorphous Silicon TFT as the switching element. The module offers a high-resolution display of 400x400 pixels with support for up to 16.7 million colors, ensuring sharp and vibrant visuals.

The display is equipped with IPS technology, providing a wide viewing angle of 85° in all directions. With a typical brightness of 350 cd/m² and a contrast ratio of 1000:1, it delivers stable and clear visuals.

The module is controlled by the ST7797 IC and has a 1-Lane MIPI interface, making it easy to integrate with a variety of embedded systems. Operating Voltage is from 2.5V to 3.6V (typical 3.3V) and the LED backlight lifetime is up to 50,000 hours, ensuring long-lasting performance.

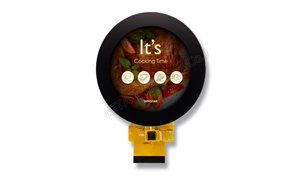

2.1" Round TFT Display

The WFN0210A2T0YADNA000 is a  2.1" circular IPS TFT LCD Display Module featuring advanced TFT technology, utilizing Amorphous Silicon TFT as the switching element. The module offers a high-resolution display of 480x480 pixels with a typical brightness of 430 cd/m² and a contrast ratio of 1000:1, this module delivers vibrant visuals suitable for indoor environments.

Integrated projected capacitive touch panel (PCAP) with optical bonding improves clarity and durability. The CST826 touch controller supports single-finger operation via the I²C interface, enabling smooth and responsive interaction.

The module uses the ST7701 IC for display driving and supports both 3-wire SPI and 18-bit RGB interfaces. Equipped with IPS technology, provides a wide viewing angle of 85° in all directions.

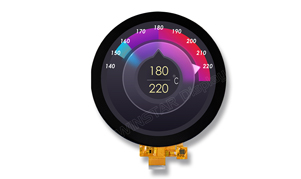

4.0" Round TFT Display with touch screen

The WFN0400A2T0YAMNA000 is a 4-inch touch screen display module with a 720x720 resolution, delivering clear and detailed visuals on a round screen.

The IPS technology, offers an ultra-wide viewing angle of 85° in all directions. This ensures vibrant and clear images, regardless of the viewing angle. With a typical brightness of 320 cd/m² and a high contrast ratio of 1200:1, the display is exceptionally bright and highlights details more effectively.

The built-in FL7703 TFT driver IC supports 4-Lanes MIPI DSI interface and allows for high-speed data transmission while maintaining high resolution, producing smooth visual performance. The interface not only provides fast data transfer but also reduces power consumption.

The touch function is equipped with a (PCAP) Projected Capacitive Touch Panel  and incorporates Optical Bonding technology.
