BasicDIM Wireless Module

The Casambi enabled basic DIM wireless module has a small form factor and is controllable with an Adroid/iOS smart device without a need for an external gateway service. The module forms a wireless communication network automatically with up to 127 nodes. Modules may be easily implemented into RGB and colour temperature controls.

  • AC mains input 220 - 240VAC
  • Controllable switched mains output
  • Analog output: 0 - 10V / 1 - 10V
  • RF 2.4GHz
  • Configurable alalog / digital output
  • Digital output: Standalone DALI (compatible)
  • Device Firmware can be updated over-the-air

BasicDIM Wireless Module PDF

BasicDIM Wireless PWM CV 4CH

The Casambi enabled basic DIM PWM CV 4CH wireless module has 4-channel PWM outputs and is controllable with an Adroid/iOS smart device without a need for an external gateway service. The module forms a wireless communication network automatically with up to 127 nodes. Modules may be easily implemented into RGB and colour temperature controls.

  • Input 12-24VDC
  • Output 12-24VDC
  • Output 6A
  • RF 2.4GHz
  • Device Firmware can be updated over-the-air
  • Dimensions: 72.6 x 30 x 18mm

BasicDIM Wireless PWM CV 4CH PDF

BasicDIM Wireless PWM CV 4CH

The Casambi enabled basic DIM wireless 0 -10V 2CH module is a 2-channel 0-10v dimmer and is controllable with an Adroid/iOS smart device without a need for an external gateway service. The module forms a wireless communication network automatically with up to 127 nodes. Modules may be easily implemented into RGB and colour temperature controls.

  • Input 12-24VDC
  • Output 0-10VDC
  • Relay output 12-24VDC 200mA max
  • RF 2.4GHz
  • Device Firmware can be updated over-the-air
  • Dimensions: 72.6 x 30 x 18mm

BasicDIM Wireless 0-10V 2CH PDF

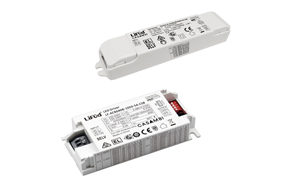

127631 38W Constant Currant Driver

The Casambi enabled 12630-1 are 38W constant current drivers with adjustable output current. The output current range is 300mA to1050mA and is set by DIP switch.

  • AC mains input 240VDC
  • Adjustable contrast current output
  • AC mains "push" dimming
  • Active PFC >0.9
  • Short circuit / overheat protection
  • Conforms to international approvals

12630-1 38W CC Driver PDF

127637 0/1-10V RGBW

The Casambi enabled 12637 is an interface which covers wireless Casambi signal into 0/1-10v output. The module has 4 channel outputs and the TW version allows control of lens vector device.

  • AC mains input 100-240VAC
  • 4-channel outputs for RGBW
  • AC mains "push" dimming
  • Class II protection
  • Short circuit / overheat protection
  • Conforms to international approvals

127637 Interface PDF

127645 50W Constant Current Driver

The Casambi 12645 is a 50W constant current driver with adjustable output current. The output current range is 300mA to 1200mA and is set by DIP switch.

  • AC mains input 240VAC
  • Adjustable contrast current output
  • AC mains "push" dimming
  • Active PFC >0.9
  • Short circuit / overheat protection
  • Conforms to international approvals

12645 50W CC Driver PDF
