We offer an extensive range of high quality Surface Mount Chip LEDs which feature miniature size, high efficiency and low power consumption. The range is available in standard and high intensity output, using  AlGaAs, AlInGaP and InGaN material to produce a wide range of colours including white chip LEDs and RGB chip LEDs. The chip LED emitters use industry standard footprint from 0402 to 1210 outline with top, reverse, and right-angle-mount packaging with optional lens. Devices are highly cost effective due to high volume production and are suitable for a variety of applications including equipment status indicators and backlighting.

LG 192 Series 0603 Chip LED

The LG192 series 0603 (metric 1608) package Chip LEDs provide a cost effective surface mount solution for backlighting and indicator applications.

  • 1.6x0.8x0.4mm package
  • Low Profile
  • Low power consumption
  • Choice of colours
  • Wide 120° angle of emission
  • Compatible with IR reflow process

Chip LED Selector Guide PDF

LG 170 Series 0805 Chip LED

The LG170 series 0805 (metric 2012) package Chip LEDs provide a cost effective surface mount solution for backlighting and indicator applications.

  • 2.0x1.25x0.8mm package
  • Low Profile
  • Low power consumption
  • Choice of colours
  • Wide 120° angle of emission
  • Compatible with IR reflow process

LG170 0805 Selector Guide PDF

17-21 0805 Selector Guide PDF

LG 150 Series 1206 Chip LED

The LG150 series 1206 (metric 3216) package Chip LEDs provide a cost effective surface mount solution for backlighting and indicator applications.

  • 3.2x1.6x1.2mm package
  • Low Profile
  • Low power consumption
  • Choice of colours
  • Wide 120° angle of emission
  • Compatible with IR reflow process

LG150 1206 Selector Guide PDF

LG 0402 Series 0402 Chip LED

The LG0402 series 0402  (metric 1005) package Chip LEDs provide a cost effective surface mount solution for backlighting and indicator applications.

  • 1.0x0.5x0.4mm package
  • Low Profile
  • Low power consumption
  • Choice of colours
  • Wide 120° angle of emission
  • Compatible with IR reflow process

LG-0402-8UG-CT PDF

LG 1206 Series 1206 Chip LED lens

The LG1206 series 1206  (metric 3216) package Chip LEDs have integral lens for focussed angle of emission. These lensed chip LEDs provide a cost effective surface mount solution for backlighting and indicator applications.

  • 3.2x1.6x1.85mm package
  • Integral lens
  • Low power consumption
  • Choice of colours
  • Focussed 60° angle of emission
  • Compatible with IR reflow process

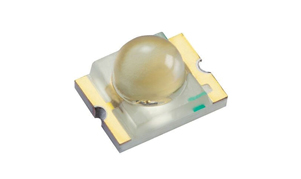

CSSC-UPO Series 1210 Chip LED lens

The CSSC-UPO series 1210  (metric 3224) package Chip LEDs have integral lens for focussed angle of emission. These lensed chip LEDs provide a cost effective surface mount solution for backlighting and indicator applications.

  • 3.2x2.4x2.5mm package
  • Integral lens
  • Low power consumption
  • Choice of colours
  • Focussed 25° angle of emission
  • Compatible with IR reflow process

CSSC-UPOHR44XX-P0X PDF

45-21 Series 1210 Chip LED lens

The Everlight 45-21 series 1210  (metric 3224) package Chip LEDs have integral lens for focussed angle of emission. These lensed chip LEDs provide a cost effective surface mount solution for backlighting and indicator applications.

  • 3.2x2.4x2.5mm package
  • Integral lens
  • Low power consumption
  • Choice of colours
  • Focussed 25° angle of emission
  • Compatible with IR reflow process

42-21A-R6C-ATW-1T-V5 PDF

LG 110 Series 1204 Side Emit

The LG110 series 1204 (metric 3010/3210) package are side emit Chip LEDs and provide a cost effective surface mount solution for backlighting and indicator applications.

  • 3.2x1.0x1.5mm 1204 package
  • Low Profile
  • Low power consumption
  • Choice of colours
  • Wide 120° angle of emission
  • Compatible with IR reflow process

LG110 Selector Guide PDF

LG 110 Series 1204 RGB Side Emit

The LG110 series B3173BRG-20C 1204 package Chip LED from Harvatek provides a cost effective full colour RGB surface mount solution for backlighting and indicator applications.

  •   3.2x1.0x1.5mm 1204 package
  • Side view emission
  • Low power consumption
  • 3-chip full color RGB
  • Wide 120° angle of emission
  • Compatible with IR reflow process

LG110 Selector Guide PDF

LG 1305 Reverse Mount Chip LED

The LG1305 series 1305 (metric 3212) surface mount chip LED is low profile, high intensity, for backlighting and indicator applications.

  • 3.2x1.25x1.1mm 1204 package
  • Low Profile
  • Low power consumption
  • Choice of colours
  • Wide 130° angle of emission
  • Compatible with IR reflow process

1305 Reverse Mount PDF

LG 1306 Series Reverse Mount

The LG-1306 series reverse mountable surface mount chip LED is low profile, high intensity, for backlighting and indicator applications.

  • 3.2x1.6x0.6mm 1204 package
  • Low Profile
  • Low power consumption
  • Choice of colours including RGB
  • Wide 130° angle of emission
  • Compatible with IR reflow process

1306 Reverse Mount PDF

1205 RGB Chip LED

The BKS-CT3TAG12 1205 (metric 3213) package  chip LED provides a miniature cost effective full colour RGB solution for backlighting and indicator applications.

  • 3.2x1.3x1.1mm  package
  • Top & reverse mount
  • Low power consumption
  • 3-chip full colour RGB
  • Wide 120° angle of emission
  • Compatible with IR reflow processes

LG197RGB Chip LED

The LG197RGB 0605 (metric 1615) package  chip LED provides a miniature cost effective full colour RGB solution for backlighting and indicator applications.

  • 1.6x1.5x0.55mm  package
  • Top view emission
  • Low power consumption
  • 3-chip full colour RGB
  • Wide 120° angle of emission
  • Compatible with IR reflow processes

LG197RGB PDF

LG170RGB 0805 Chip LED

The LG170RGB 0805 (metric 2013) package  chip LED provides a miniature cost effective full colour RGB solution for backlighting and indicator applications.

  • 2.0x1.3x0.8mm  package
  • Top view emission
  • Low power consumption
  • 3-chip full colour RGB
  • Wide 120° angle of emission
  • Compatible with IR reflow processes

LG170RGB PDF
