Winstar's Electronic Paper Display (EPD) incorporates "bistable" technology, allowing images to persist even when the power source is removed, consuming power only during E-paper screen updates. This E-paper display technology offers a wide range of advantages.

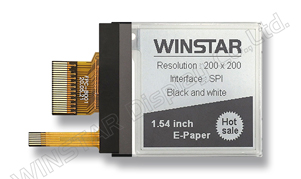

1.54" E-Paper

Monochrome TFT Display

Features include:

  • Ultra-low power consumption
  • No backlight required
  • Slim and energy-efficient
  • Wide viewing angle
  • Multiple color options
  • Sunlight readability

2.13" E-Paper

Features include:

  • Power is utilized only during image updates, achieving energy-saving
  • Long life,  suitable for extended use.
  • Available in black and white, three-color, or four-color configurations.
  • Suitable for outdoor applications

2.9" E-Paper

3.5" Monochrome TFT

Features include:

  • Available with touch panel models
  • Front light options
  • Custom options
Link to Winstar E-Paper
Picture Display Format Model Number Size (Inch) Outline Dimension (mm) Viewing Area
(mm)		 Active Area
(mm)		 Interface Touch Screen Temperature

(°C)
200x200 WAA0154A2AAA4N 1.54 31.8×37.32 31.8×37.32 37x27 SPI,MCU No 0-50
250x122 WAA0213A2BNA6N 2.13 29.2×59.2

 24.5×49.35

 23.7046×48.55

 SPI,MCU

 No

 0-40
250x122 WAA0213A2AAA6N 2.13 29.2×59.2 28.41×57.1 23.7×48.5 SPI,MCU

 No 0-50
128x296 WAA0290A2CNA8N 2.9 36.7×79 - 29.056×66.896 SPI No 0-40
296x128 WAA0290A2ABA8 2.9 36.7×79 35.5×75.4 29.056×66.896 SPI,MCU PCAP 0-50
296x128 WAA0290A2AAA8N 2.9 36.7×79 35.1×76.5 29.056×66.896 SPI,MCU No
0-50
296x128 WAA0290A2ADA8N 2.9 36.7×79 35.1×76.5 29.056×66.896 SPI,MCU PCAP 0-50
