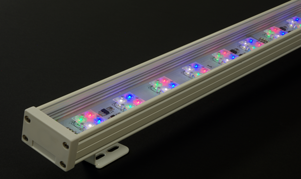

LDP Series

RGB LED Wall washer

The LDP series linear LED fitting is constructed from anodised aluminium and is designed for wall washing applications. The fitting utilises high  performance mid power LED emitters with a choice of optics and is supported by a wide range of drivers & controllers.

  • Operating voltage 24VDC
  • 46x33mm profile
  • Choice of lengths up to 2.0 metres
  • Power consumption 40W/metre
  • Constant voltage or constant current
  • Choice of beam angle
  • Choice of colours inc. RGB & RGBW
  • Choice of connection type

LDP Series PDF

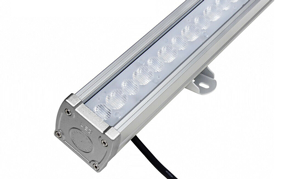

SYS-RL1 RGB+CT

The SYS-RL1 series linear LED fitting is constructed from anodised aluminium and is designed for wall washing applications. The fitting utilises high  performance mid power LED emitters with 15x60° optics and is supported by a wide range of drivers & controllers.

  • Operating voltage 24VDC
  • Power consumption 24W/metre
  • Full colour RGB+CT (2700-6000K)
  • 75lm/W 1800lm/metre
  • 1017x 64x62mm profile
  • Illumination distance >15 metres
  • IP66

SYS-RL1 PDF

SAP17F-1205 Series

The SAP17F series compact flat linear LED fitting is constructed from anodised aluminium and is designed for local area illumination. A choice of LED strip may be selected to meet the illumination requirements along with clear, opal, diffused and frosted filter option.

  • Operating voltage 12V or 24VDC
  • 17x7mm profile
  • Choice of lengths up to 2.0 metres
  • Choice of power ratings/metre
  • Choice of luminous flux/metre
  • Choice of colours/CCT
  • Choice of colours inc. RGB & RGBWY
  • Choice of connection type

SAP17F-1205 PDF

View Linear Aluminium Profiles

SAP17R-1204 Series

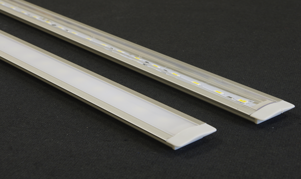

The SAP17R series compact recessed linear LED fitting is constructed from anodised aluminium and is designed for local area illumination. A choice of LED strip may be selected to meet the illumination requirements along with clear, opal, diffused and frosted filter option.

  • Operating voltage 12V or 24VDC
  • 17x7mm profile
  • Choice of lengths up to 2.0 metres
  • Choice of power ratings/metre
  • Choice of luminous flux/metre
  • Choice of colours/CCT
  • Choice of colours inc. RGB & RGBWY
  • Choice of connection type

SAP17F-1204 PDF

SAP Linear Addressable MP4

SAP17S-1202 Series

The SAP17S series compact recessed linear LED fitting is constructed from anodised aluminium and is designed for local area illumination. A choice of LED strip may be selected to meet the illumination requirements along with clear, opal, diffused and frosted filter option.

  • Operating voltage 12V or 24VDC
  • 17x7mm profile
  • Choice of lengths up to 2.0 metres
  • Choice of power ratings/metre
  • Choice of luminous flux/metre
  • Choice of colours/CCT
  • Choice of colours inc. RGB & RGBWY
  • Choice of connection type

SAP17F-1202 PDF

SAP18RA-1203 Series

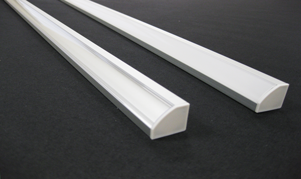

The SAP18RA series right angled linear LED fitting is constructed from anodised aluminium and is designed for corner mounting. A choice of LED strip may be selected to meet the illumination requirements along with clear, opal, diffused and frosted filter option.

  • Operating voltage 12V or 24VDC
  • 18x18mm profile
  • Choice of lengths up to 2.0 metres
  • Choice of power ratings/metre
  • Choice of luminous flux/metre
  • Choice of colours/CCT
  • Choice of colours inc. RGB & RGBWY
  • Choice of connection type

SAP18RA-1203 series PDF

SAP-08 Series

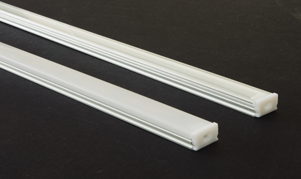

The SAP12S series compact recessed linear LED fitting is constructed from anodised aluminium and is designed for local area illumination. A choice of LED strip may be selected to meet the illumination requirements along with clear, opal, diffused and frosted filter option.

  • Operating voltage 12V or 24VDC
  • 12x7.8mm profile
  • Choice of lengths up to 2.0 metres
  • Choice of power ratings/metre
  • Choice of luminous flux/metre
  • Choice of colours/CCT
  • Choice of colours inc. RGB & RGBWY
  • Choice of connection type

SAP12S-008 PDF

SAP-2002 Series

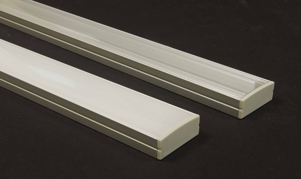

The SAP23F series compact recessed linear LED fitting is constructed from anodised aluminium and is designed for local area illumination. A choice of LED strip may be selected to meet the illumination requirements along with clear, opal, diffused and frosted filter option.

  • Operating voltage 12V or 24VDC
  • 23.5x9.75mm profile
  • Choice of lengths up to 2.0 metres
  • Choice of power ratings/metre
  • Choice of luminous flux/metre
  • Choice of colours/CCT
  • Choice of colours inc. RGB & RGBWY
  • Choice of connection type

SAP23F-2002 PDF

SAP-168 Series

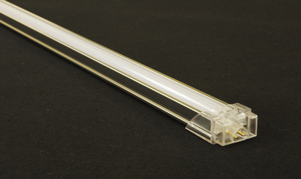

The SAP168 series connectable linear LED fitting is constructed from anodised aluminium and is designed for local area illumination.
A choice of LED strip may be selected to meet the illumination requirements along with clear, opal, diffused and frosted filter option.

  • Operating voltage 12V or 24VDC
  • 16.8x11mm profile
  • Choice of lengths up to 2.0 metres
  • Choice of power ratings/metre
  • Choice of luminous flux/metre
  • Choice of colours/CCT
  • Choice of colours inc. RGB & RGBWY
  • Choice of connection type

SAP168 Series PDF

SAP-2001 Series

The SAP23R series compact recessed linear LED fitting is constructed from anodised aluminium and is designed for local area illumination. A choice of LED strip may be selected to meet the illumination requirements along with clear, opal, diffused and frosted filter option.

  • Operating voltage 12V or 24VDC
  • 30.9x9.75mm profile
  • Choice of lengths up to 2.0 metres
  • Choice of power ratings/metre
  • Choice of luminous flux/metre
  • Choice of colours/CCT
  • Choice of colours inc. RGB & RGBWY
  • Choice of connection type

SAP-2002 Series

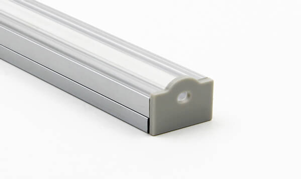

The SAP19S series compact recessed linear LED fitting is constructed from anodised aluminium and is designed for local area illumination. A choice of LED strip may be selected to meet the illumination requirements along with clear, opal, diffused and frosted filter option.

  • Operating voltage 12V or 24VDC
  • 19.5x16mm profile
  • Choice of lengths up to 2.0 metres
  • Choice of power ratings/metre
  • Choice of luminous flux/metre
  • Choice of colours/CCT
  • Choice of colours inc. RGB & RGBWY
  • Choice of connection type

SAP19S-1304 PDF
