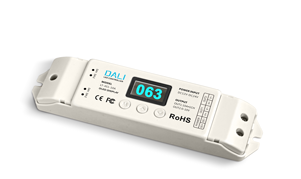

Low Voltage DALI Single Channel CV

The Ltech LT-451-12A CV DALI to PWM single channel dimming driver adopts the latest DALI standard. No computer software or DALI editor is required when being used independently. Manual addressing, grouping and scenario editing is supported.

  • Low voltage input 12v to 24v
  • Output 12VDC or 24VDC
  • Output single channel 12A
  • DALI dimming IEC62386
  • 0-100% flicker free dimming
  • 0-10v output
  • 175x44x30mm (LxWxH)

LT-451-12A PDF

Low Voltage DALI 4-Channel CV

The Ltech LT-404-5A CV DALI to PWM 4-channel dimming driver adopts the latest DALI standard and PWM dimming using the standard DALI logarithmic dimming curve.

  • Low voltage input 12v to 24v
  • Output 12VDC or 24VDC
  • Output 4 channel 5A/channel
  • DALI dimming IEC62386
  • 0-100% flicker free dimming
  • Push dimming
  • 175x44x30mm (LxWxH)

LT-404-5A PDF

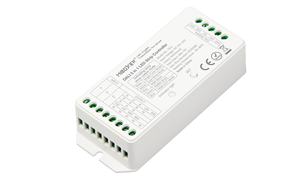

Low Voltage DALI 5-in-1 CV

DL5 DALI 5 in 1 LED Controller

The DL-5 constant voltage LED driver accepts DALI input to 5-channel PWM output. The driver adopts the latest DALI standard and provides PWM dimming output for LED strips. The controller is compatible with single colour, CCT, RGB, RGBW and RGB+CCT output modes.

  • Low voltage12VDC to 24VDC
  • Output 6A/channel 15A max
  • Single color, CT, RGB, RGBW & RGB+CCT output modes
  • DALI dimming IEC62386-102,207,209
  • Compatible with dP1, DP2, & DP3, Touch Panels
  • 115x48x27mm (LxWxH)

DL-5 PDF

Low Voltage DALI 5-in-1 (DT8) CV

DALI DL-X 5-channel LED controller

The DL-X DALI to PWM 1-5 channel constant voltage dimming driver adopts the latest DALI standard and provides PWM dimming output for LED strips. Features include optional linear or logarithmic dimming curve and integral display to show address and group information.

  • Low voltage12VDC to 24VDC
  • Output 6A/channel 20A max
  • Single color, CT, RGB, RGBW & RGB+CCT output modes
  • DALI dimming IEC62386-102,207,209
  • Supports DT-8
  • Push dimming
  • 130x49x27mm (LxWxH)

DL-X PDF

Low Voltage DALI Single Channel CV

The Ltech LT-DIN-411-10A CV DALI to PWM single channel dimming driver adopts the latest DALI standard and PWM dimming using the standard DALI logarithmic dimming curve.

  • Low voltage input 12v to 24v
  • Output 12VDC or 24VDC
  • Output single channel 10A (12A)
  • DALI dimming IEC62386/IEC60929
  • 0-100% flicker free dimming
  • 0-10v output
  • 112x35x67mm (LxWxH)

LT-DIN-411-10 PDF
