With the advances in UV LED chip efficiencies & packaging, Ultraviolet LED light sources are now able to fulfil a range of diverse applications where filament lamps were traditionally used, including chromatography, photo-lithography and curing of compounds & resins. UV LEDs suit applications in environmental monitoring, life science and sterilization. Our UV LEDs are available in a range of wavelengths and power ratings.

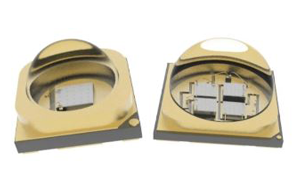

UV-A

Our UV-A LEDs offer product stability and high thermal conductivity using aluminium nitride ceramic with high heat resistance. The quartz lens produces a long irradiation distance and high output. UV-A LEDs are widely used in applications including curing, exposure, printing & test equipment.

  • Spectral range 315-400nm
  • High optical power
  • Choice of Surface mount packages
  • Choice of 60 ° or 120° angle
  • 4-chip 6565 wavelength 365-410nm
  • Customised solutions available

UV-A 3838 60 selector guide PDF

UV-B

Our UV-B LEDs are designed to meet the fast
growing demand for Ultra Violet and Deep UV applications. Applications include targeted sterilisation and treatment in Phototherapy, Bio-analysis and Detection

  • Spectral range 280-315nm
  • High optical power
  • Power 0.2W to 1.1W
  • Choice of 60 ° or 120° angle

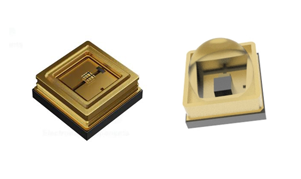

  • 3737 package spectral range 309 - 313nm

UV-B Selector Guide PDF

UV-C

UV-C LEDs offer product stability and high thermal conductivity using aluminium nitride ceramic with high heat resistance. The quartz lens produces a long irradiation distance and high output. Applications include water and air purification, sterilisation and treatment.

  • Spectral range 270-285nm
  • Power 0.2W to 1.0W
  • 3535, 3537 or 6060 package
  • 3030 package 0.2W to 0.4W
  • 6060 package 4x 0.5W and 4x1W
  • Viewing angle 120°

      UV-C Selector Guide PDF

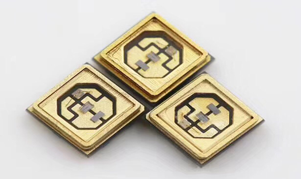

      UV-A and UV-C combined

      UV-A+C LEDs comprise of 2-chips in one package offering 2 separate wavelengths of emission. Applications include blood analysis, food preservation, UV curing, money detection

      • Spectral range 270-285nm / 395-495nm
      • Power 0.2W to 0.5W
      • 3535 package
      • Angle of emission 120°

          UV-A+C Selector Guide PDF
