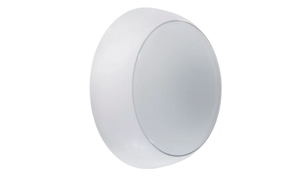

PF330W-14W Circular Bulkhead

The PF330W circular bulkhead LED luminaires are  designed to replace traditional 2D compact fluorescent lamp types with an LED light source. The array of high performance LED emitters produce a bright and even light output. Provision is also made for integral motion sensor and emergency pack.

  • Supply voltage 240VAC integral driver
  • Dimensions Ø330 x H100mm
  • Long life >40,000 hours
  • Power consumption from 14W
  • IP65
  • Opal Diffuser
  • Choice of colour temperatures
  • High CRI >82
  • TP(b) rated
  • Choice of dimmable & emergency driver

PF330W-14W PDF

PF430 Circular Bulkhead

The PF430W circular bulkhead LED luminaires are designed to replace traditional 2D compact fluorescent lamp types with an LED light source. The array of high performance LED emitters produce a bright and even light output through an optimised opal lens. Provision is also made for motion sensor and emergency pack.

  • Supply voltage 240VAC integral driver
  • Dimensions 430xmm
  • Long life >40,000 hours
  • Power consumption from 15-20W
  • Low glare
  • Choice of colour temperatures
  • High CRI >82
  • Beam angle 100°
  • Choice of dimmable & emergency driver

PF430 PDF

PF430RGB PDF

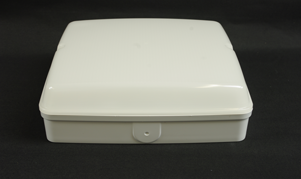

PF275x275 Square Bulkhead

The PF275x275W square bulkhead LED luminaires are  designed to replace traditional 2D compact fluorescent lamp types with an LED light source. The array of high efficient LED emitters produce a bright and even light output.
Provision is also made for motion sensor and emergency pack.

  • Supply voltage 240VAC integral driver
  • Dimensions 275x275mm
  • Long life >40,000 hours
  • Power consumption 15-20W
  • IP65
  • Low glare
  • Choice of colour temperatures
  • High CRI >82
  • Beam angle 100°
  • Choice of dimmable & emergency driver

PF275x275 PDF

PFB-104 Single Linear NCF

The PFB single series linear LED bulkhead fitting is a rugged surface mount, non-corrosive luminaire designed to replace single 4' and 5' fluorescent fittings  The array of high performance LED emitters produce a bright and even light output. Provision is also made for integral motion sensor and emergency pack. Applications include industrial lighting, car park & warehouse lighting.

  • Supply voltage 240VAC integral driver
  • Dimensions PFB1266 (4') PFB1566 (5')
  • Long life >40,000 hours
  • Power consumption from 15W to 30W
  • IP65
  • Choice of diffused or clear
  • Choice of colour temperatures
  • High CRI >82
  • Beam angle 100°
  • Choice of dimmable & emergency driver

PFB1266x104NCF PDF

PFB1566x104NCF PDF

PFB-165 Dual Linear NCF

The PFB dual series linear LED bulkhead fitting is a rugged surface mount, non-corrosive luminaire designed to replace dual 4' and 5' fluorescent fittings  The array of high performance LED emitters produce a bright and even light output. Provision is also made for integral motion sensor and emergency pack. Applications include industrial lighting, car park & warehouse lighting.

  • Supply voltage 240VAC integral driver
  • Dimensions PFB1266 (4') PFB1566 (5')
  • Long life >40,000 hours
  • Power consumption from 15W to 30W
  • IP65
  • Choice of diffused or clear
  • Choice of colour temperatures
  • High CRI >82
  • Beam angle 100°
  • Choice of dimmable & emergency driver

PFB1266x165DNCF PDF

PFB1566x165DNCF PDF
